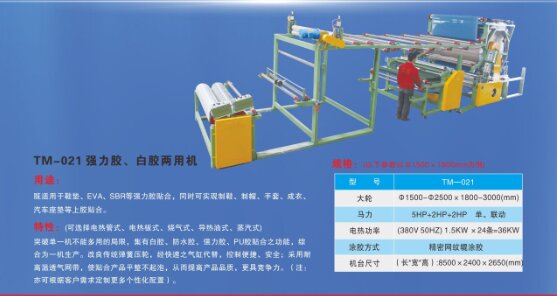

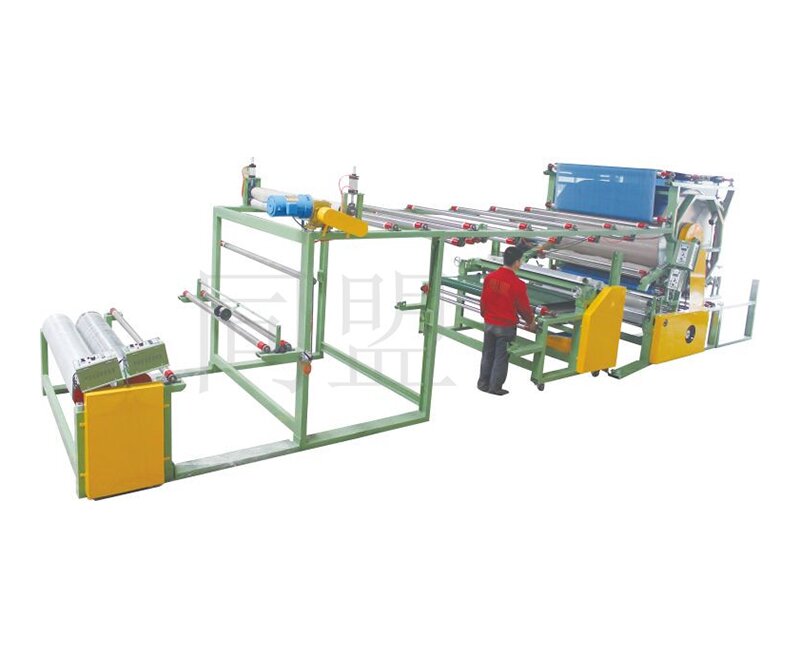

Dual purpose machine for strong glue and white glue

Purpose: The dual-purpose machine for strong glue and white glue is suitable for bonding strong glue such as insoles, EVA, SBR, and can also achieve adhesive bonding for shoe making, hat making, glove making, clothing, car seat cushions, etc.

Features: (optional electric heating tube type, electric heating plate type, gas type, thermal oil type, steam type) Breaking through the limitations of a single machine that cannot be used for multiple purposes, it integrates the functions of white glue, waterproof glue, strong glue, and PU glue bonding, and is produced in one machine. Improved traditional spring pressure wheel, replaced by a fast cylinder for convenient and safe control; By using high-temperature resistant and breathable mesh belts, the bonded products are smooth and non foaming, thereby improving product quality and making them more competitive. (Note: More personalized configurations can also be customized according to customer needs)

Specification: (The following parameters are based on the standard Φ 1500×); For example, 1800mm

Product Details

model

TM—021

Big Wheel

Φ1500-Φ2500× 1800-3000(mm)

Horsepower

5HP 2HP 2HP single/linkage

Electric heating power

(380V 50HZ) 1.5KW× 24 pieces=36KW

Heating wheel method

Tie iron fluorine dragon cloth or electroplating

Glue application method

Precision mesh roller adhesive coating

Machine dimensions

(Length * Width * Height): 8500× 2400× 2650(mm)
