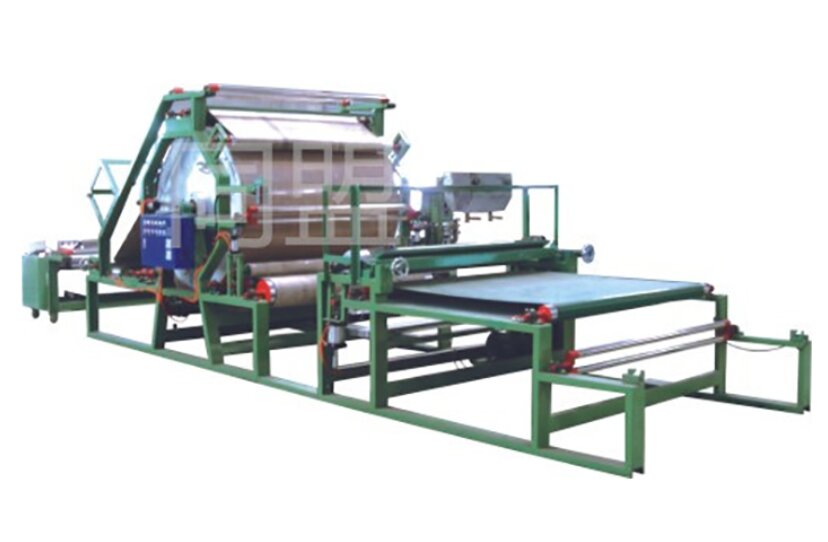

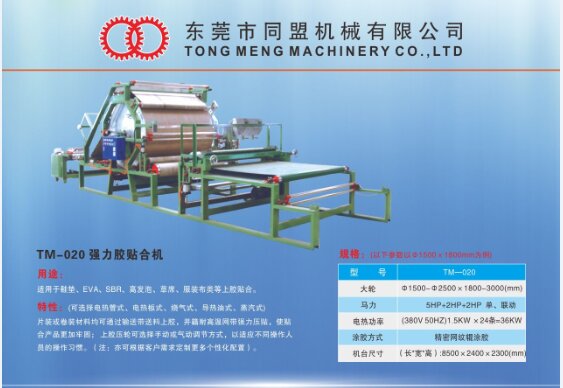

Strong adhesive bonding machine

Usage: Strong adhesive bonding machine suitable for insoles EVA、SBR、 High foaming, straw mats, clothing fabrics, etc. are glued together.

Features: (optional electric heating tube type, electric heating plate type, gas type, thermal oil type, steam type) Both sheet and roll materials can be fed and glued by conveyor belts, and strongly pressed with high-temperature resistant mesh belts to make the bonded products more firm; The glue pressing wheel can be adjusted manually or pneumatically to adapt to the operating habits of different operators. (Note: More personalized configurations can also be customized according to customer needs)

Product Details

Specification: (The following parameters are in the form of Φ 1500×); For example, 1800mm


model

TM—020

Big Wheel

Φ1500-Φ2500× 1800-3000(mm)

Horsepower

5HP 2HP 2HP single/linkage

Electric heating power

(380V 50HZ) 1.5KW× 24 pieces=36KW

Glue application method

Precision mesh roller adhesive coating

Machine dimensions

Length * Width * Height: 8500× 2400× 2300(mm)
