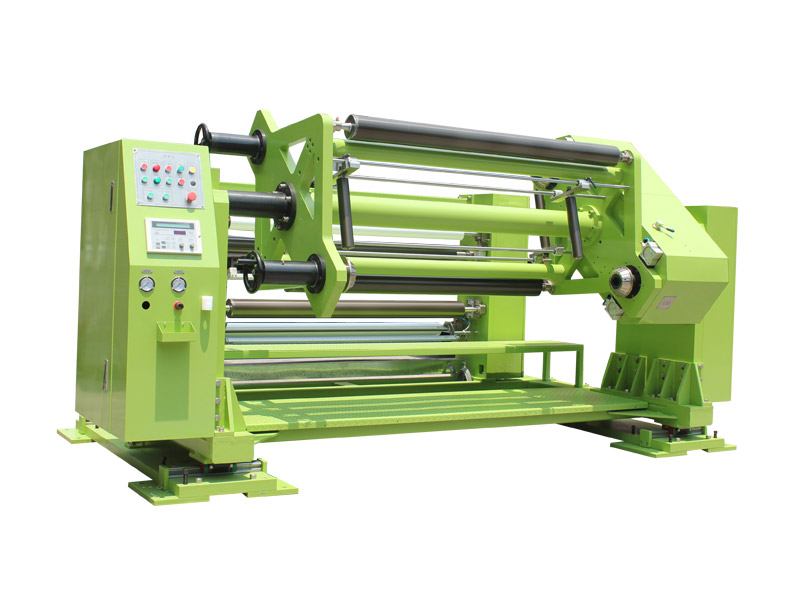

Thermal curing OCA coating and laminating machine

Equipment features:
1. Siemens system PLC centralized control;
2. Various precision coating methods can be selected (comma scraper coating, slit extrusion coating, etc.);
3. Multiple heat sources can be selected for heating (electric, natural gas hot blast stove, thermal oil, etc.);

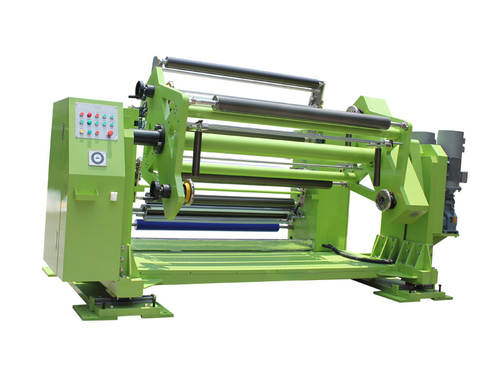

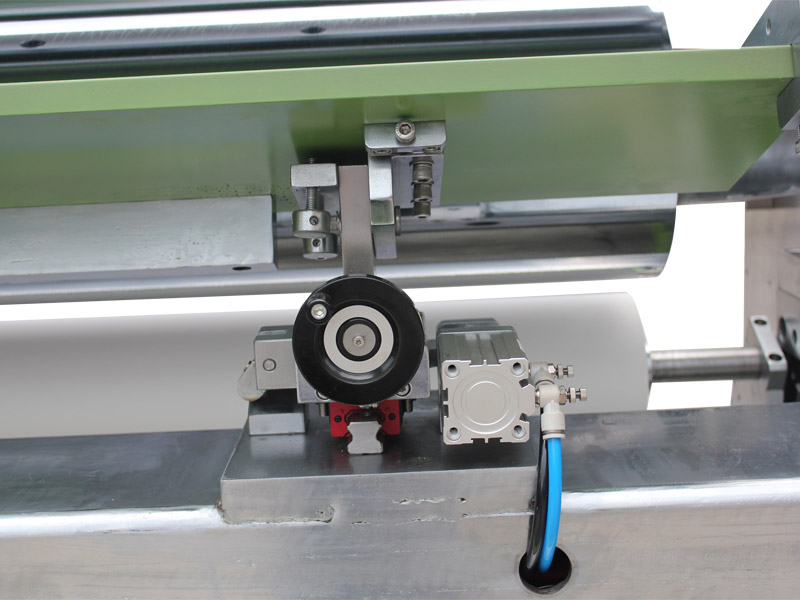

4. The substrate unwinding is equipped with a peeling device, which can adapt to composite materials;

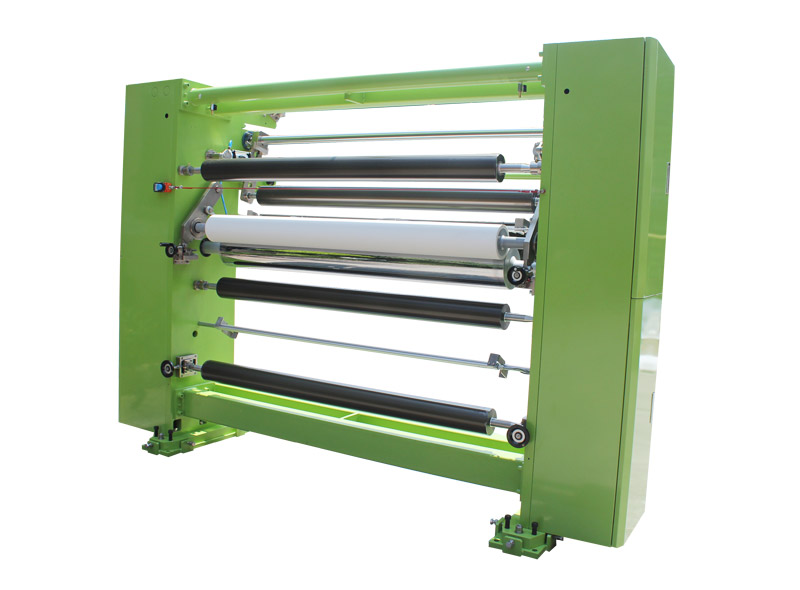

5. Double roller composite structure, with steel rollers and rubber rollers coordinated;
6. High cleanliness baking and drying oven, high temperature of 160 ℃;

Online Inquiry

Product Details

Equipment applicable fields:This equipment is specifically designed for the production of precision coating and laminating machines for thermosetting OCA optical adhesives

Main technical parameters:

Working width: 1600 mm
Mechanical spoke: 1700mm
Mechanical speed: 5~50 m/min, PLC automatic adjustment

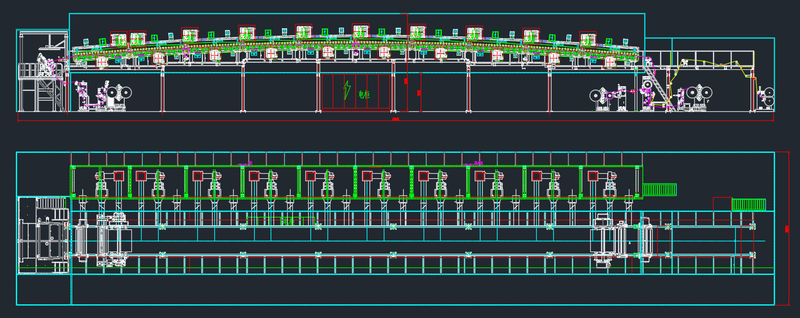

Equipment size (length * width * height): 55000× 12000× 7000 mm
Heating power: 800KW adjustable
Total power of equipment: 170KW
Power supply: 380V 50Hz
Total weight of equipment: 110000KG
